C# Code:


/// <summary>
/// 测试用的对象。

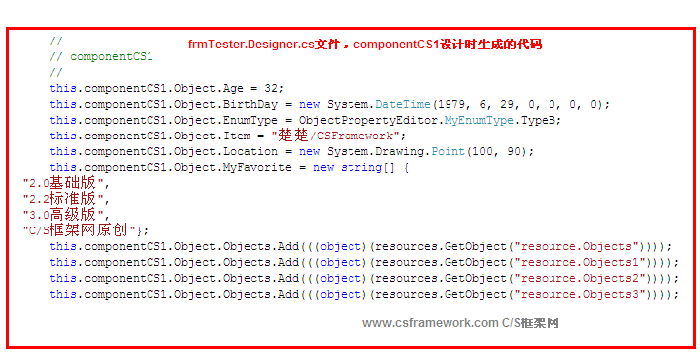

/// 请观察xxx.Designer.cs文件中该对象的属性持久化。
/// 必须定义[Serializable]属性。
/// </summary>
[Serializable]
public class MyObject
{
   private int _Age = 0;
   private string _Item = "";
   private string[] _MyFavorite;
   private MyEnumType _EnumType;
   private Point _Location;
   private DateTime? _BirthDay;
   private ArrayList _Objects;

   public MyObject()
   {
      _Objects = new ArrayList();
   }

   /// <summary>
   /// 持久化嵌套的对象数组，.Net设计器将对象持久化到res文件中
   /// </summary>
   [DesignerSerializationVisibility(DesignerSerializationVisibility.Content)]
   [Localizable(true)]
   public ArrayList Objects
   {
      get { return _Objects; }
      set { _Objects = value; }
   }

   //枚举类型
   public MyEnumType EnumType
   {
      get { return _EnumType; }
      set { _EnumType = value; }
   }

   public Point Location
   {
      get
      {
         return _Location;
      }
      set
      {
         _Location = value;
      }
   }

   public int Age
   {

      get { return _Age; }
      set { _Age = value; }
   }

   /// <summary>
   /// 定义可空类型
   /// </summary>
   public DateTime? BirthDay
   {
      get { return _BirthDay; }
      set { _BirthDay = value; }
   }

   public string Item
   {
      get { return _Item; }
      set { _Item = value; }
   }

   public override string ToString()
   {
      //用于在Properties Window内显示的名称
      return "(MyObject)";
   }

   /// <summary>
   /// 测试持久化字符串数组
   /// </summary>
   public string[] MyFavorite
   {
      get { return _MyFavorite; }
      set { _MyFavorite = value; }
   }

}

//来源:C/S框架网(www.csframework.com) QQ:1980854898

C# Code:

[Designer(typeof(MyComponentDesigner), typeof(IDesigner))]
[DefaultProperty("Object")]
public partial class ComponentCS : Component
{

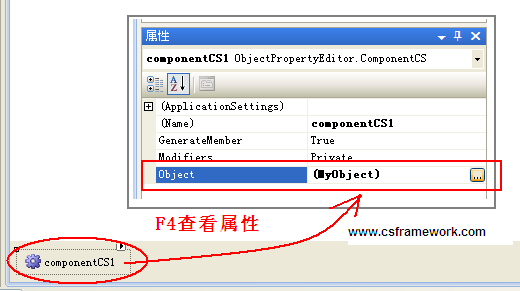

   /// <summary>
   /// 嵌套的对象，打开属性编辑器可修改这个对象
   /// </summary>
   private MyObject _Object = new MyObject();

   public ComponentCS(IContainer container)
   : base()
   {
      container.Add(this);
   }

   /// <summary>
   /// 嵌套的对象，打开属性编辑器可修改这个对象
   /// </summary>
   [DesignerSerializationVisibility(DesignerSerializationVisibility.Content)]
   [Editor(typeof(MyItemEditor), typeof(UITypeEditor))]
   [LocalizableAttribute(true)]
   [Category("Appearance")]
   [Description("MyObject类型对象")]
   public MyObject Object
   {
      get { return _Object; }
      set { _Object = value; }
   }

}


//来源:C/S框架网(www.csframework.com) QQ:1980854898

C# Code:


/// <summary>

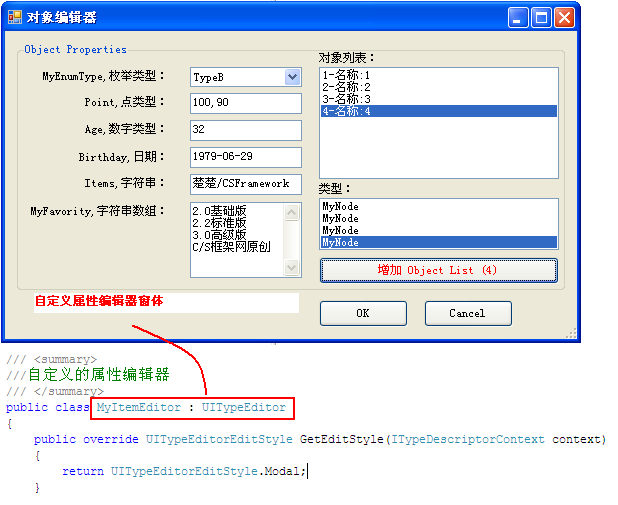

///自定义的属性编辑器
/// </summary>
public class MyItemEditor : UITypeEditor
{
   public override UITypeEditorEditStyle GetEditStyle(ITypeDescriptorContext context)
   {
      return UITypeEditorEditStyle.Modal;
   }

   public override object EditValue(ITypeDescriptorContext context, IServiceProvider provider, object value)
   {
      if (provider != null)
      {
         IWindowsFormsEditorService svc = (IWindowsFormsEditorService)provider.GetService(typeof(IWindowsFormsEditorService));

         if (svc != null && context.Instance != null)
         {
            //取出设计器所在的窗体(组件/控件所在窗体)
            IDesignerHost host = (IDesignerHost)provider.GetService(typeof(IDesignerHost));
            if (host == null) return value;

            //context.Instance:可以得到当前的Component1组件。
            ComponentCS c = context.Instance as ComponentCS;
            MyObject o = c.Object;
            if (o == null) o = new MyObject();

            frmMyObjectEditor editForm = new frmMyObjectEditor(o);
            svc.ShowDialog(editForm);//打开属性编辑窗体
            editForm.Dispose();//释放内存

            //重新序列化内容到.Designer.cs文件
            context.PropertyDescriptor.SetValue(context.Instance, value);

            return o;//返回修改后的对象
         }
      }

      return value; //返回预设的对象
   }
}

//来源:C/S框架网(www.csframework.com) QQ:1980854898

C# Code:


/// <summary>
/// 自定义设计器
/// </summary>
public class MyComponentDesigner : ComponentDesigner
{
   public MyComponentDesigner()
   : base()
   {

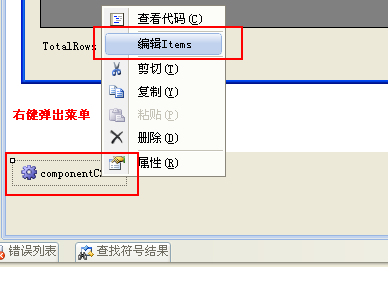

      // 添加"编辑Items"到右键菜单和智能标记中。
      DesignerVerb verb = new DesignerVerb("编辑Items", new EventHandler(OnDesignItems));
      this.Verbs.Add(verb);
   }

   private void OnDesignItems(object sender, EventArgs e)
   {
      this.DoDefaultAction();
   }

   // 1、可以设计Component的默认事件创建方法签名，并将用户的光标定位到该位置。
   // 2、也可以为Component添加双击时要进行的操作。
   public override void DoDefaultAction()
   {
      ComponentCS c = this.Component as ComponentCS;

      if (c.Object == null) c.Object = new MyObject();

      frmMyObjectEditor editor = new frmMyObjectEditor(c.Object);

      //调用属性编辑窗体编辑对象
      if (DialogResult.OK == editor.ShowDialog())
      {
         //取出Object属性的PropertyDescriptor，派生类：ReflectPropertyDescriptor
         //PropertyDescriptor:是抽象基类.
         PropertyDescriptor pd = TypeDescriptor.GetProperties(c)["Object"];

         //当设计器修改了对象的属性，持久化属性的值到Designer.cs文件。
         if (pd != null) pd.SetValue(c, c.Object);
      }

      editor.Dispose();
   }
}


//来源:C/S框架网(www.csframework.com) QQ:1980854898
