一、数据库新建表 dt_data_Customer

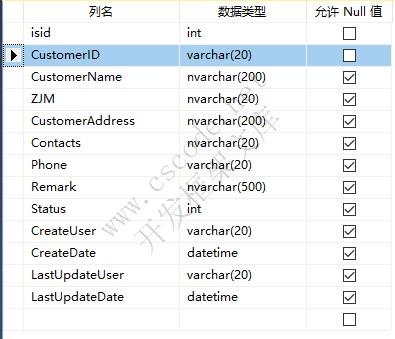

1.1 表结构预览

1.2 SQL语句

CREATE TABLE [dbo].[dt_Data_Customer](
    [isid] [int] IDENTITY(1,1) NOT FOR REPLICATION NOT NULL,
    [CustomerID] [varchar](20) NOT NULL,
    [CustomerName] [nvarchar](200) NULL,
    [ZJM] [nvarchar](20) NULL,
    [CustomerAddress] [nvarchar](200) NULL,
    [Contacts] [nvarchar](20) NULL,
    [Phone] [varchar](20) NULL,
    [Remark] [nvarchar](500) NULL,
    [Status] [int] NULL,
    [CreateUser] [varchar](20) NULL,
    [CreateDate] [datetime] NULL,
    [LastUpdateUser] [varchar](20) NULL,
    [LastUpdateDate] [datetime] NULL,
 CONSTRAINT [PK_DT_DATA_CUSTOMER] PRIMARY KEY CLUSTERED
(
    [CustomerID] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
) ON [PRIMARY]
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'自增列' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'dt_Data_Customer', @level2type=N'COLUMN',@level2name=N'isid'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'客户编号' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'dt_Data_Customer', @level2type=N'COLUMN',@level2name=N'CustomerID'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'客户名称' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'dt_Data_Customer', @level2type=N'COLUMN',@level2name=N'CustomerName'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'助记码' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'dt_Data_Customer', @level2type=N'COLUMN',@level2name=N'ZJM'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'客户地址' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'dt_Data_Customer', @level2type=N'COLUMN',@level2name=N'CustomerAddress'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'联系人' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'dt_Data_Customer', @level2type=N'COLUMN',@level2name=N'Contacts'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'联系电话' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'dt_Data_Customer', @level2type=N'COLUMN',@level2name=N'Phone'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'备注' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'dt_Data_Customer', @level2type=N'COLUMN',@level2name=N'Remark'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'状态' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'dt_Data_Customer', @level2type=N'COLUMN',@level2name=N'Status'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'创建人' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'dt_Data_Customer', @level2type=N'COLUMN',@level2name=N'CreateUser'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'创建时间' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'dt_Data_Customer', @level2type=N'COLUMN',@level2name=N'CreateDate'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'最后修改人' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'dt_Data_Customer', @level2type=N'COLUMN',@level2name=N'LastUpdateUser'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'最后修改时间' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'dt_Data_Customer', @level2type=N'COLUMN',@level2name=N'LastUpdateDate'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'基础资料-客户资料' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'dt_Data_Customer'
GO

二、代码生成器生成代码

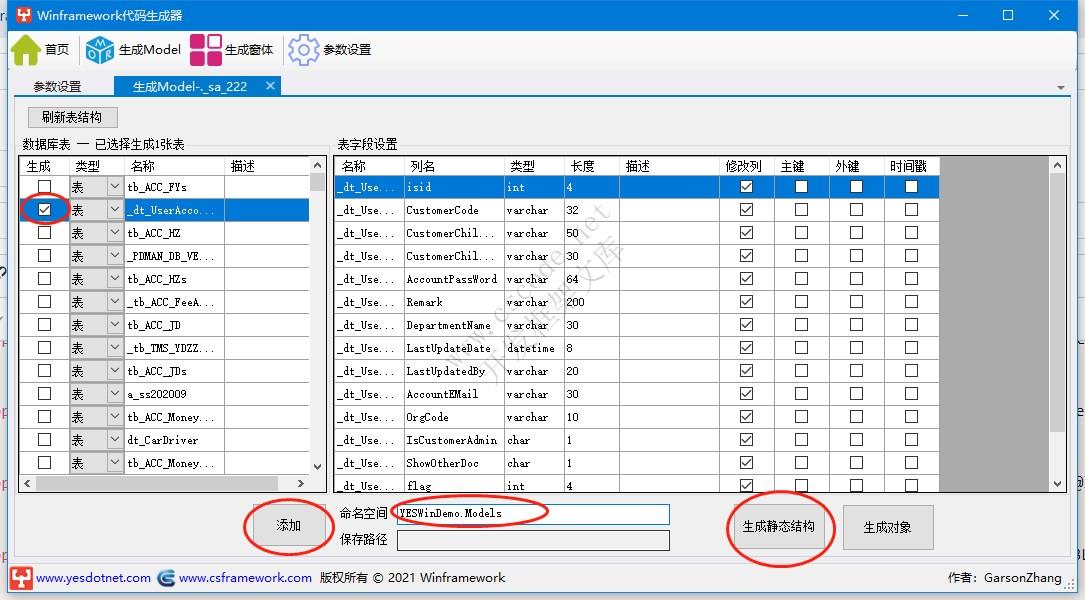

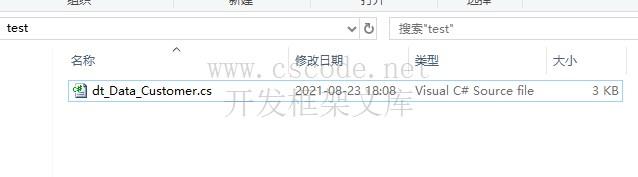

2.1 生成Model代码

2.2 复制.cs代码文件到vs解决方案

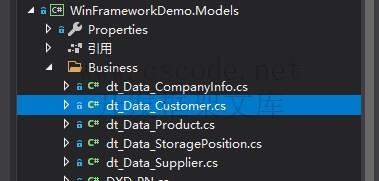

把生成的代码dt_Data_Customer.cs复制到项目的Model层，WinFrameworkDemo.Models\Business目录下：

2.3 创建BLL类

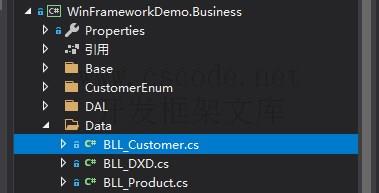

在 WinFrameworkWinDemo.Business\Data 项目中新建类 BLL_Customer.cs

代码如下：

public class BLL_Customer : Base.bllBaseUser
{
    public BLL_Customer()
        : base(typeof(dt_Data_Customer))
    {
    }
}

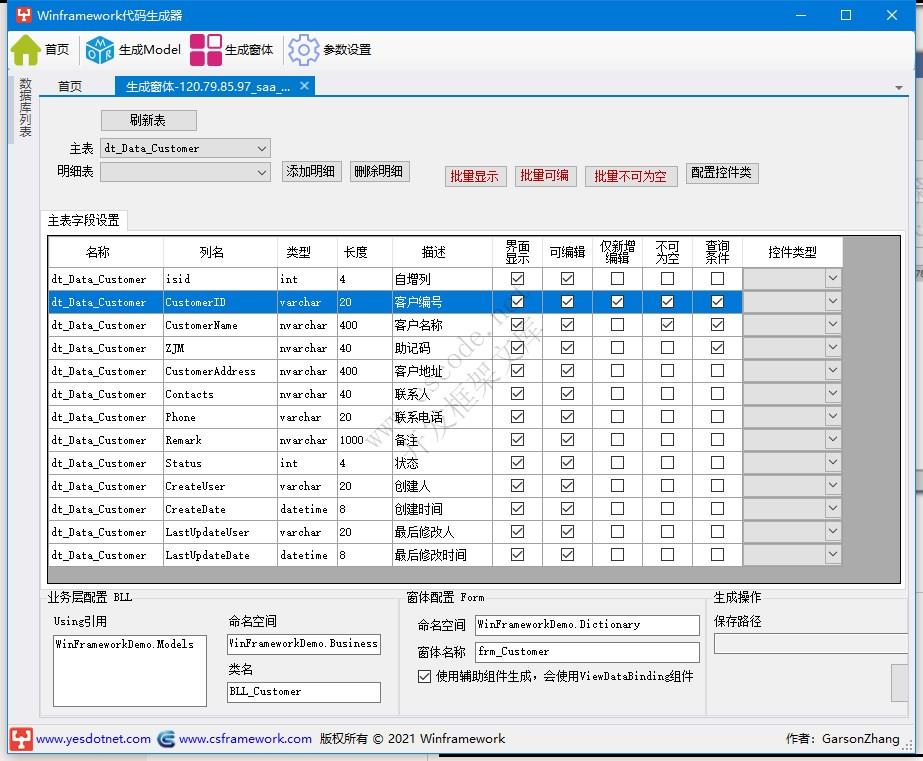

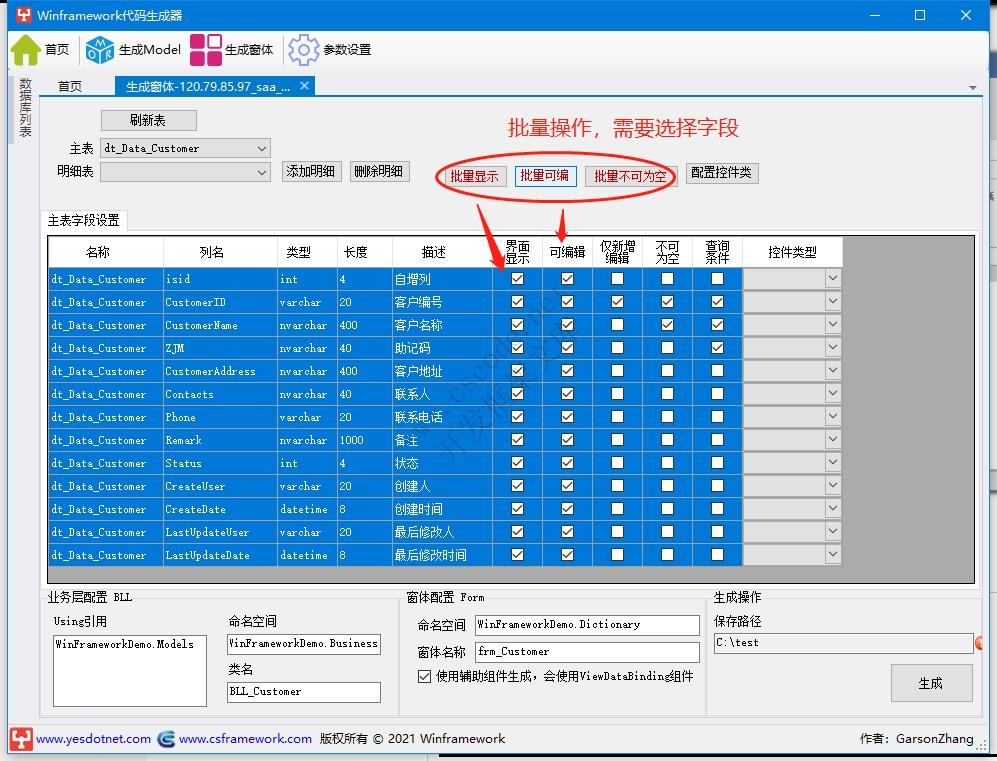

2.4 生成窗体

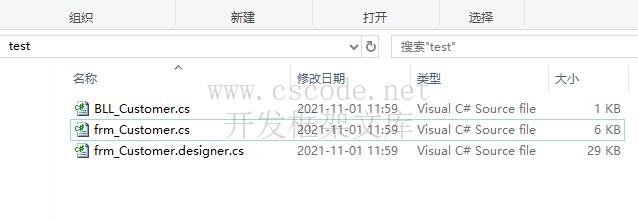

生成代码：

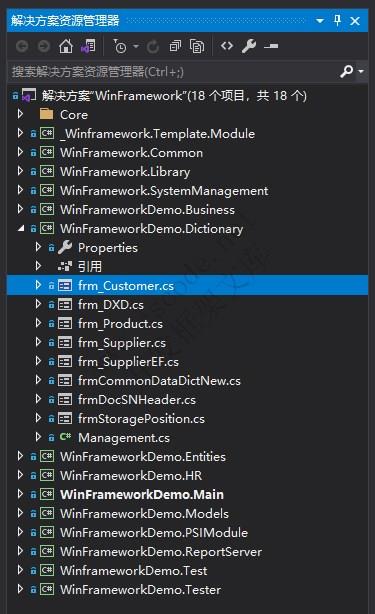

复制窗体代码文件到项目

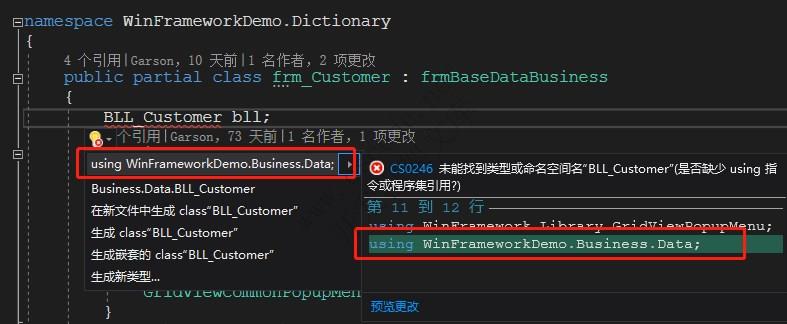

打开frm_Customer.cs 代码页，并完善 using 引用

三、功能注册

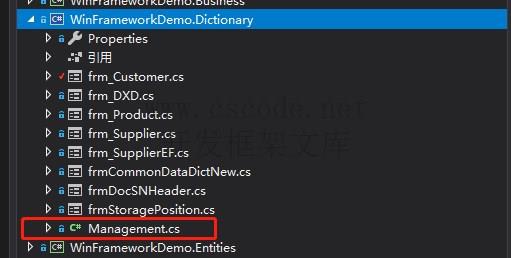

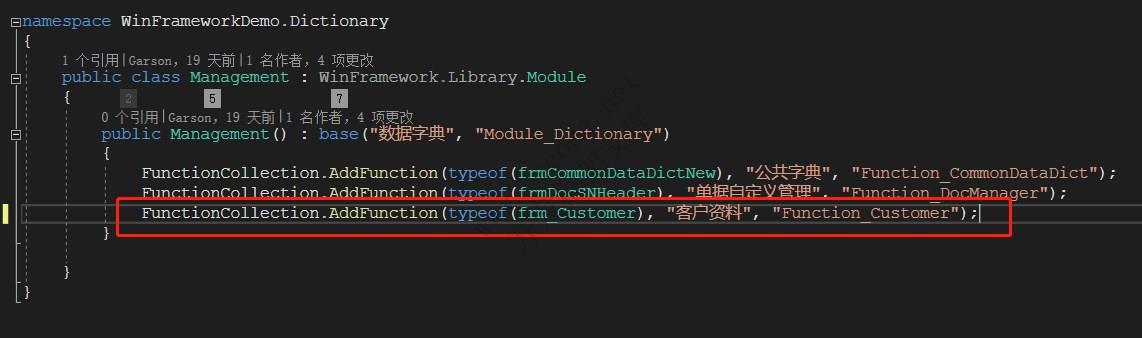

在当前模块的 Management.cs 中注册新功能：

当前模块-数据字典模块：WinFrameworkDemo.Dictionary

FunctionCollection.AddFunction(typeof(frm_Customer), "客户资料", "Function_Custome");

FunctionCollection.AddFunction(typeof(frm_Customer), "客户资料", "Function_Customer");

四、界面调整

根据实际需求，调整界面的布局，省略。

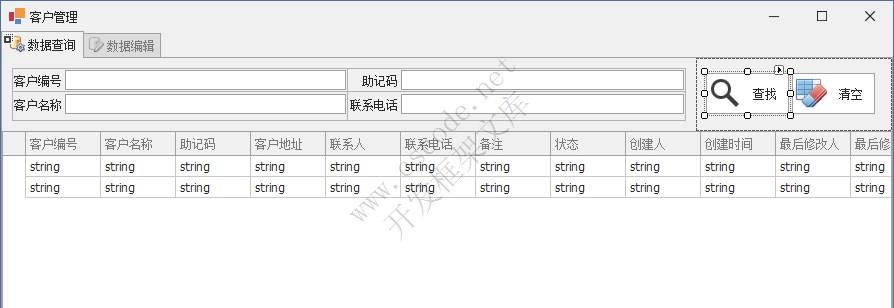

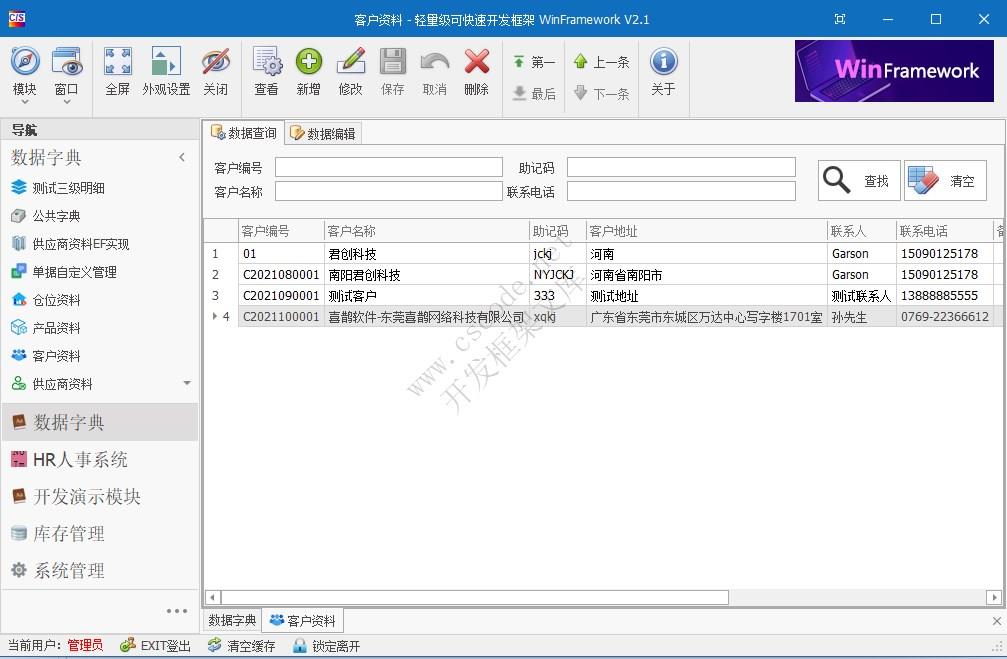

4.1 调整查询界面

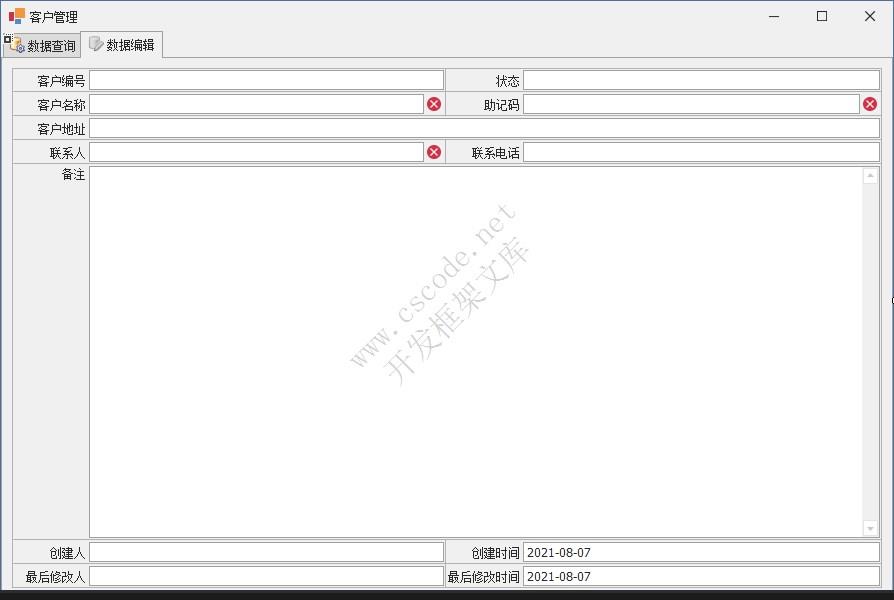

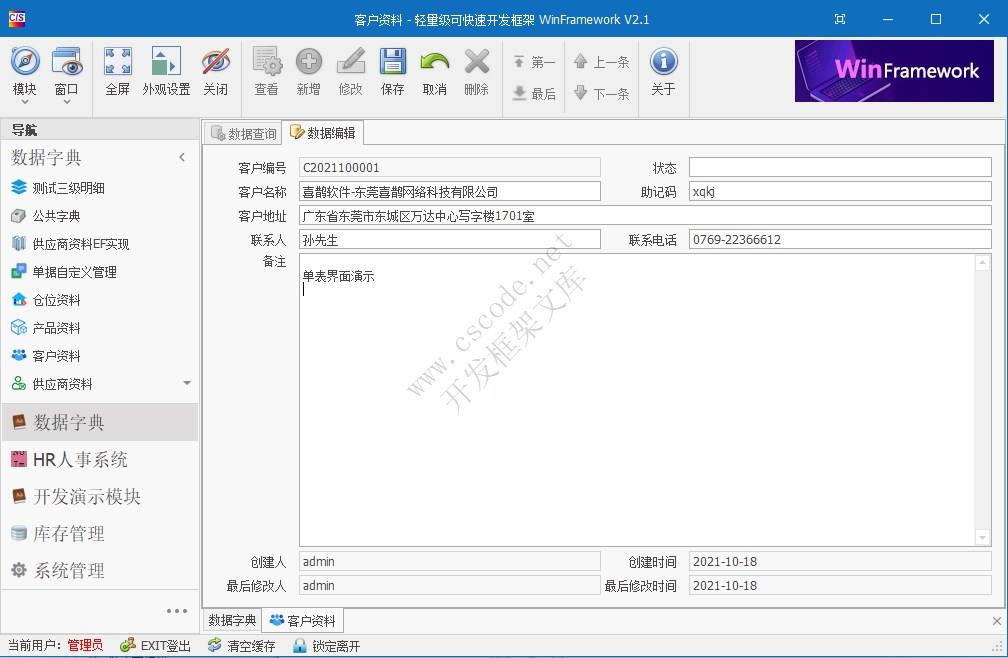

4.2 调整编辑界面

五、测试新功能

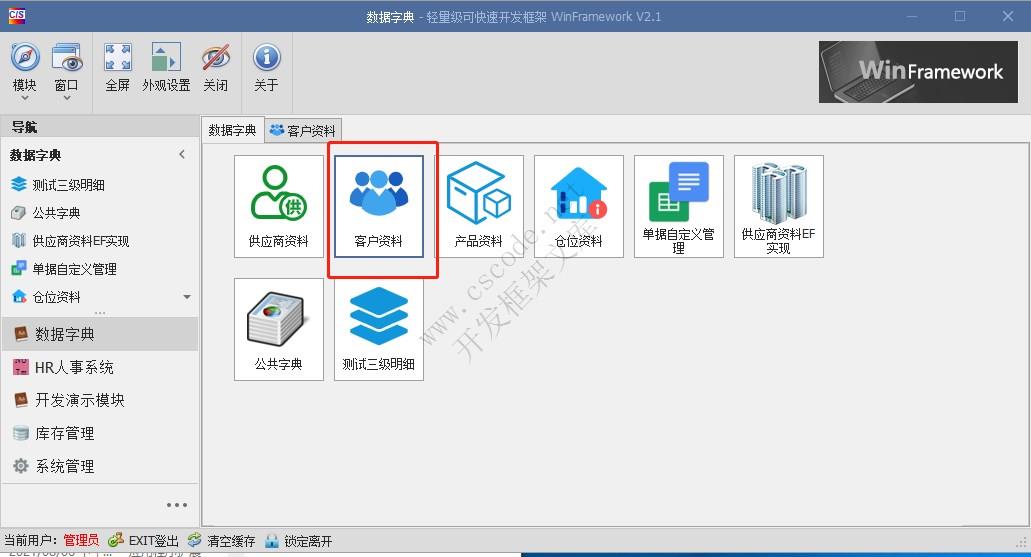

运行项目，在数据字典模块就能看到功能 <客户资料> 了

测试功能 <增> <删> <改> <查> 没问题
